1. Folding arms, seat and footrest
The arms, seat and footrest all neatly fold away. With its ultra slimline design there's plenty of room for other users of your staircase.
Our straight stairlifts are built to last, with low maintenance and high reliability. They run on maintenance free DC power packs, which are automatically recharged at the end of every trip. This type of power ensures that the stairlift is safe to use, always ready to go - even in a power outage and are incredibly smooth.
Safe and Easy
Brooks Lincoln straight stairlifts come with all the necessary features and a few extra ones, as standard. Thanks to all of the available features, the Brooks stairlift is safe, comfortable and easy to use.
- Soft start and stop system - no sudden jolts
- Easy to use joystick control
- Remote control system - means no messy wiring
- Low voltage operation - eliminates risk of shock
- Electro mechanical braking with failsafe overspeed governor
- Typical Delivery in 1 week, installed in 2-3 hours
Guarantees and Warranties
All Brooks straight stairlifts are guaranteed for a period of 12 months from the installation date. The guarantee covers you for all mechanical failures through defects in manufacture of the straight stairlift.
Features

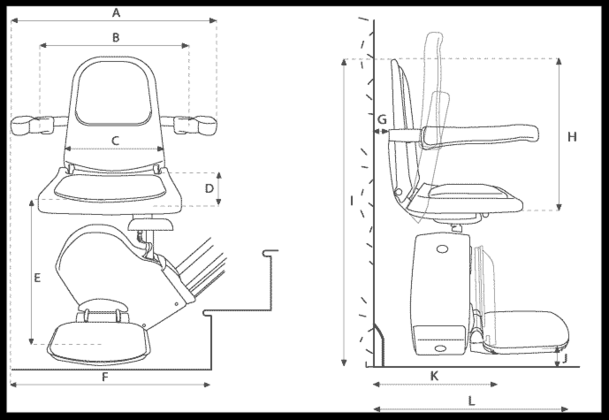

DIMENSIONS
| inch | mm | ||
|---|---|---|---|
| A | Width outside armrest | 22 | 560 |
| B | Width inside armrest | 17.5 | 445 |
| C | Width of backrest | 14.5 | 370 |
| D | Depth of seat | 16 | 410 |
| E | Top of footrest to top of seat | 17.5 | 445 |
| F | Required space from bottom of stair | 26 | 660 |
| G | Wall to seat height | 1.5 | 40 |
| H | Overall height of seat | 19.5 | 495 |
| I | Overall height | 40 | 1020 |
| J | Footrest surface to floor | 4.5 | 115 |
| K | Overall depth (folded) | 13 | 325 |
| L | Overall depth (footrest down) | 23 | 585 |
*Brooks, In keeping with its policy of continual development, reserves the right to change specifications without notice. All measurements are approximate.
440-234-6881
6909 Engle Road #19, Middleburg Heights, OH 44130, USA
* Installed cost is for designated areas of North Eastern Ohio. Additional cost may be added for different locations - call for details and pricing
5. Simple to use controls
Using the lift is as easy as pushing the armrest paddle in the direction of travel.
$ 3,280.00 Installed *

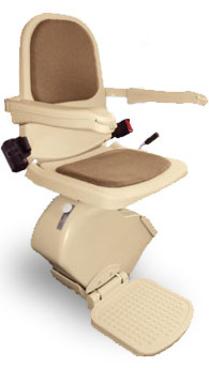

The Brooks Lincoln Straight Stairlift
Stairlifts
Here are just a few of the features which set us apart from other stairlift manufacturers and ensure we remain true to our guiding principles of quality and care:
Slimline design.
Runs on maintenance-free rechargeable batteries. Works even in a blackout!
Numerical fault code display, for easy diagnostic and repair guidance.
Weight capacity 280 Lbs. (127Kg).
No unsightly structural work needed - fits direct to your stair treads rather than the wall.
2. Wireless Remote Control
The lift can be 'called' or 'sent' up or down the stairs when ever it's needed, making it easy for multiple users to control the stairlift.
4. Swivel seat, locks in either 45° or 90° position
The seat turns and locks in either a 45° or 90° position, helping you get in and out of your stairlift, easily and safely.
3. Safety cut-out sensors on carriage and footrest
If anything is blocking the progress of the Stairlift, it will come to an immediate halt. There are 5 sensors: 3 on the footrest, and 2 on the carriage.
